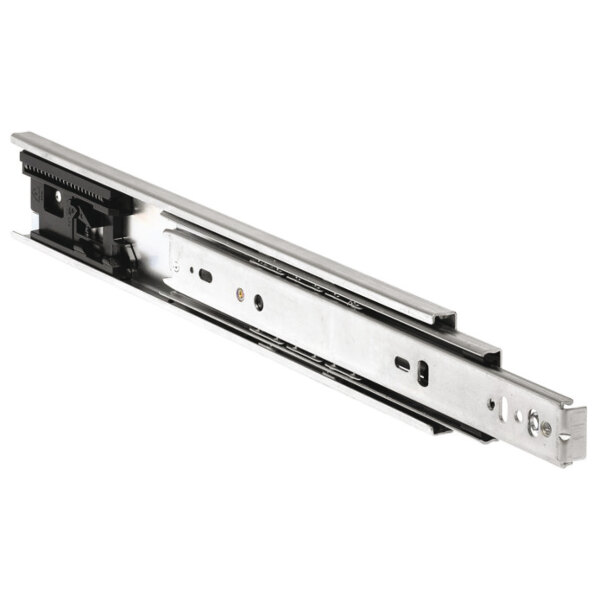

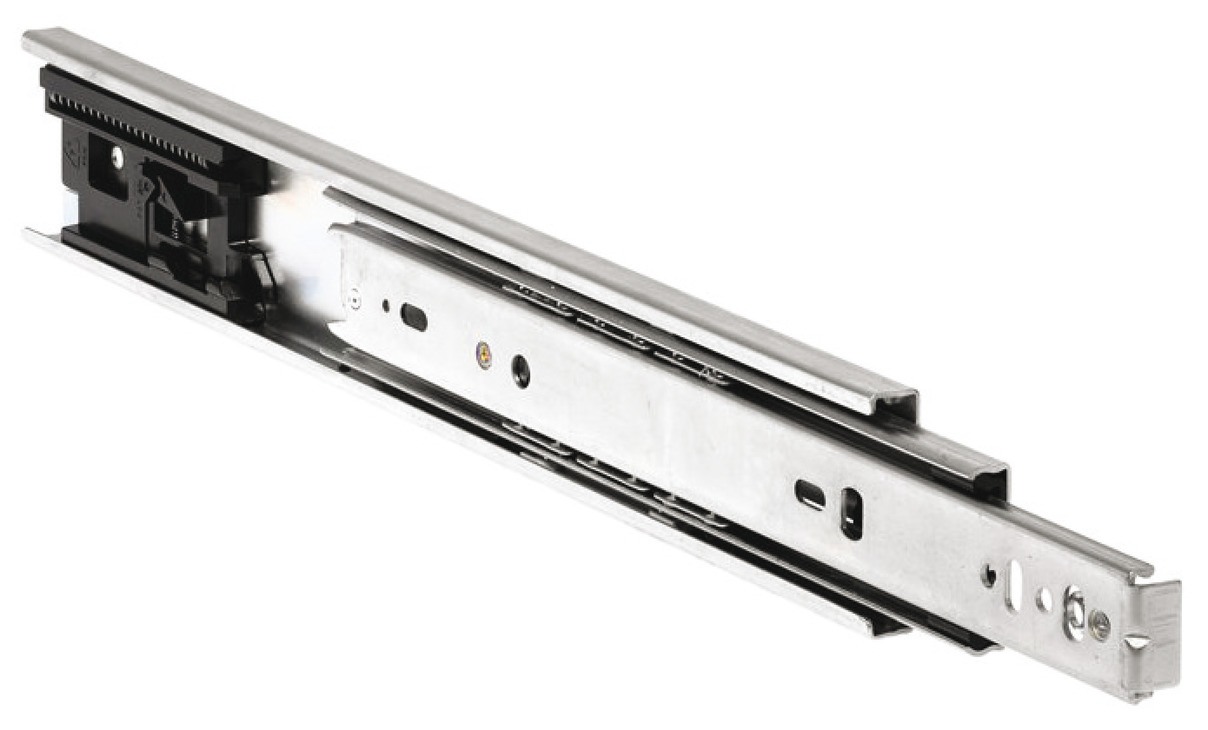

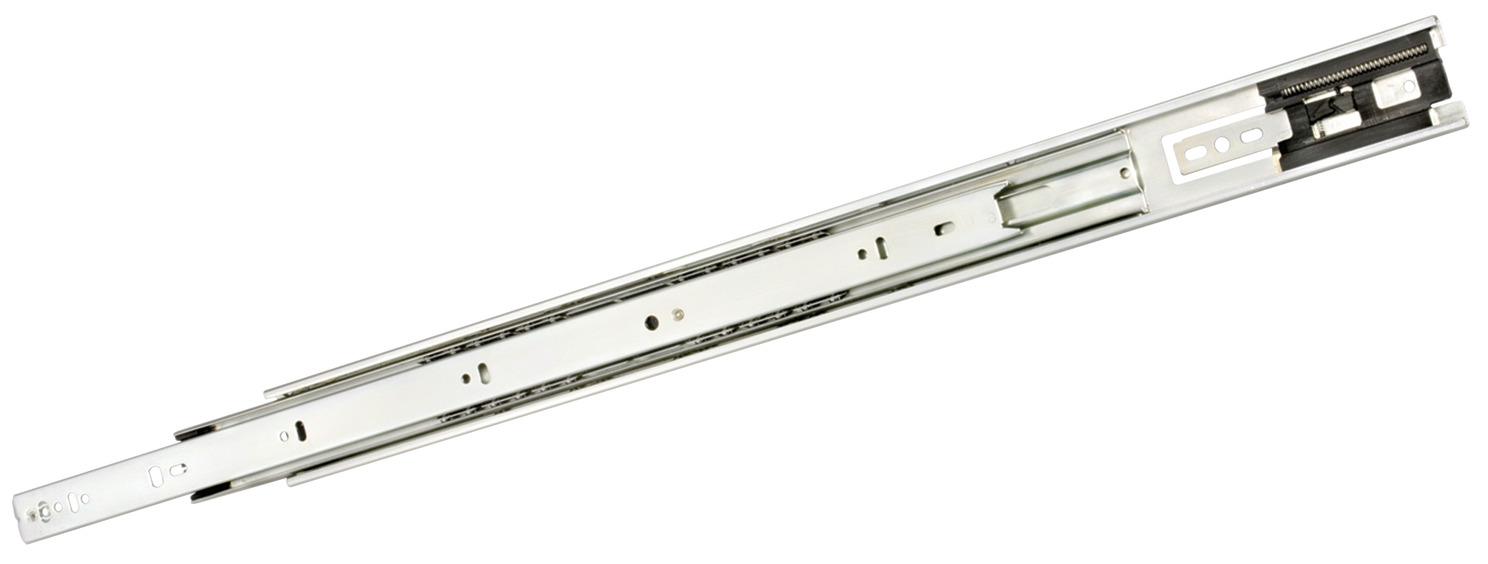

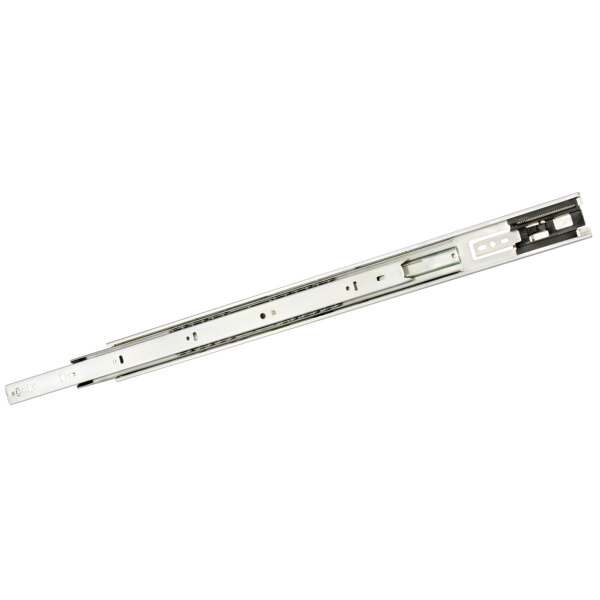

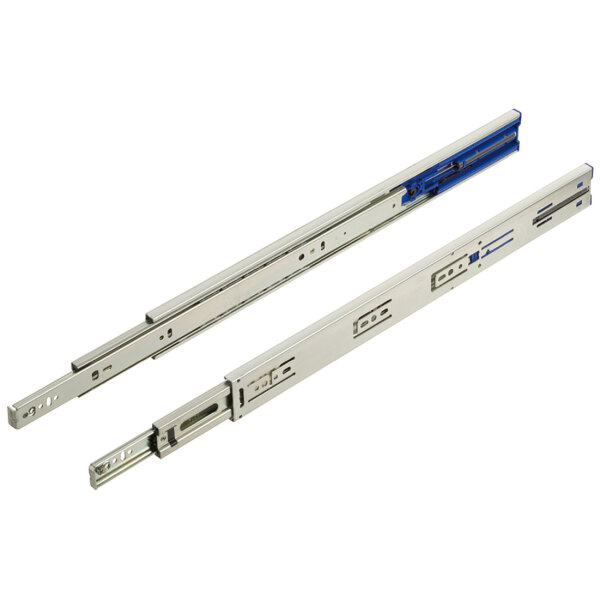

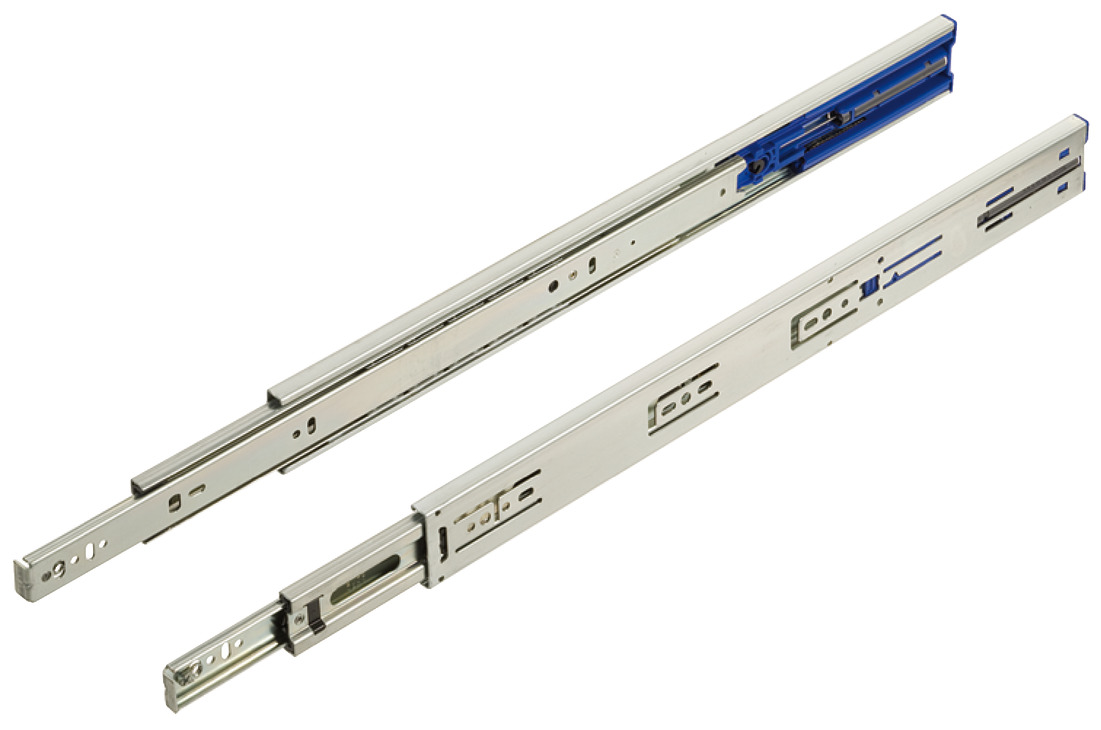

Ball Bearing Drawer Runner, Full Extension, Bright Finish, Accuride 3832TR Touch Release
SKU: 422.04.435In Stock
€61.50
Net price: €50.00
Telescopic, side mounted, Installed length 400 mm, load capacity 44 kg
Full extension, telescopic, side mounted

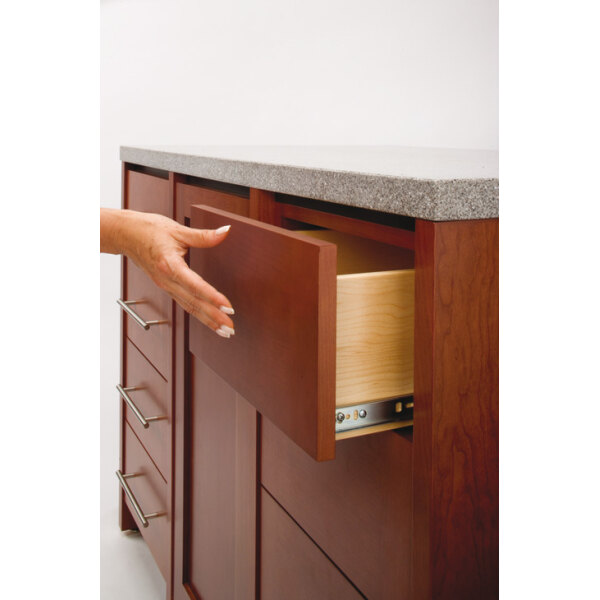

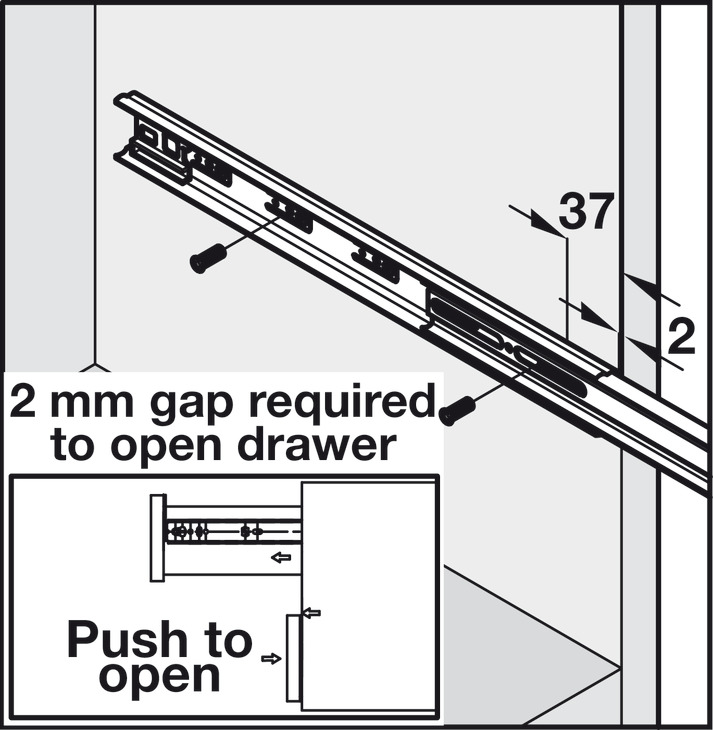

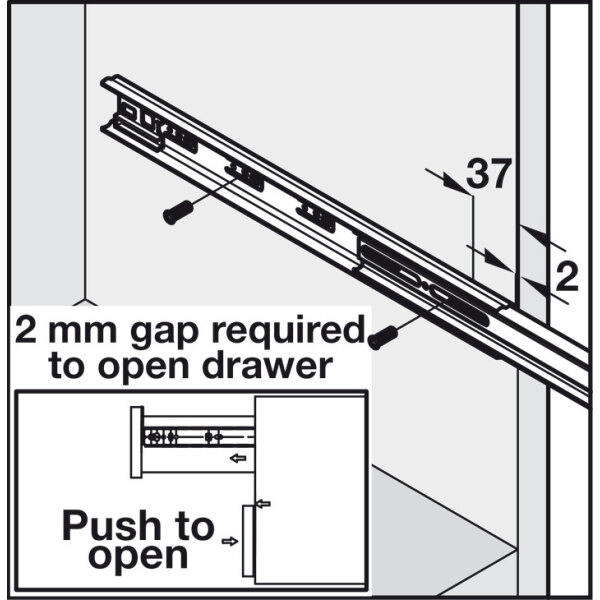

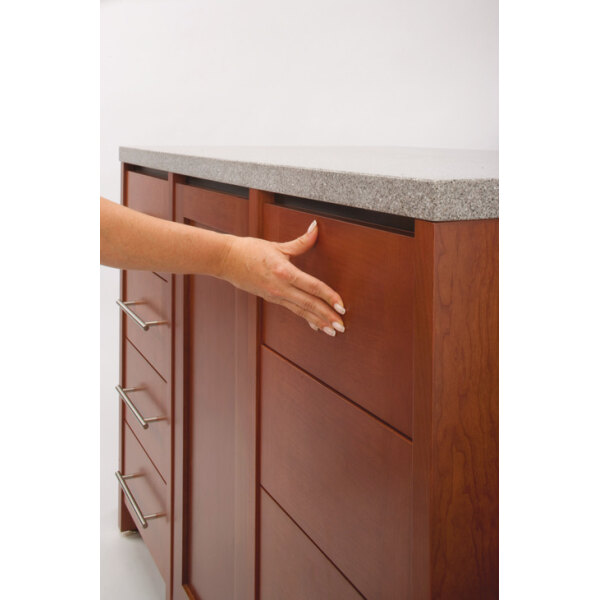

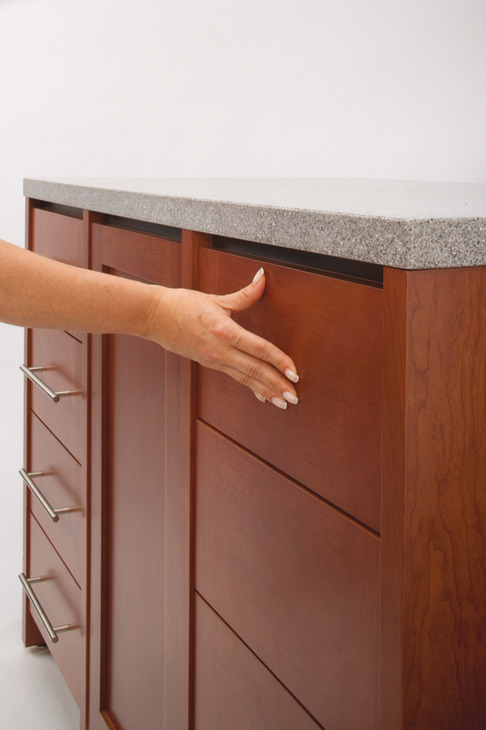

Push on the drawer front to open or close the drawer
Opening mechanism activated by travel inward
Propels drawers open approximately 50-125 mm from the closed position
Hold-in feature holds the closed drawer in

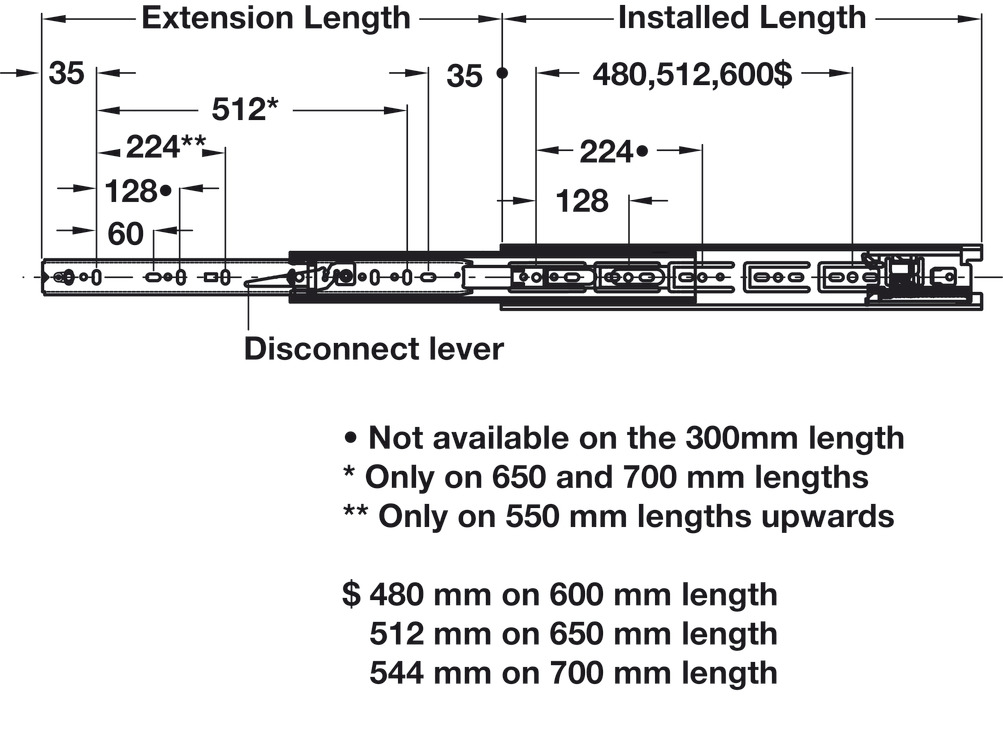

Front disconnect (by depressing lever) for drawer removal
Cam drawer adjust feature

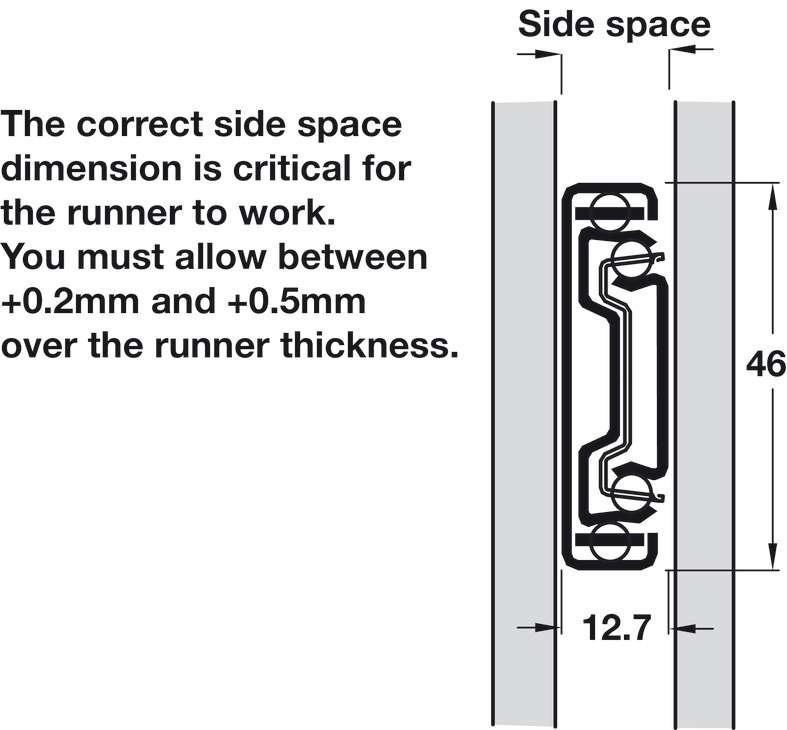

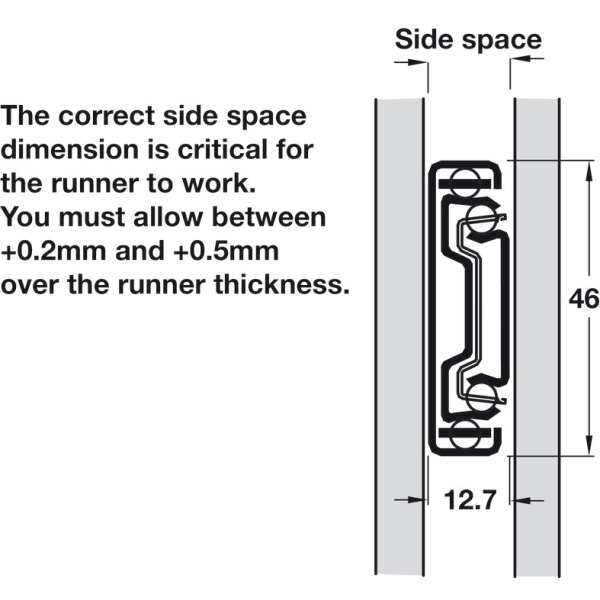

Please note maximum drawer width to be used
Not suitable for use with mounting brackets

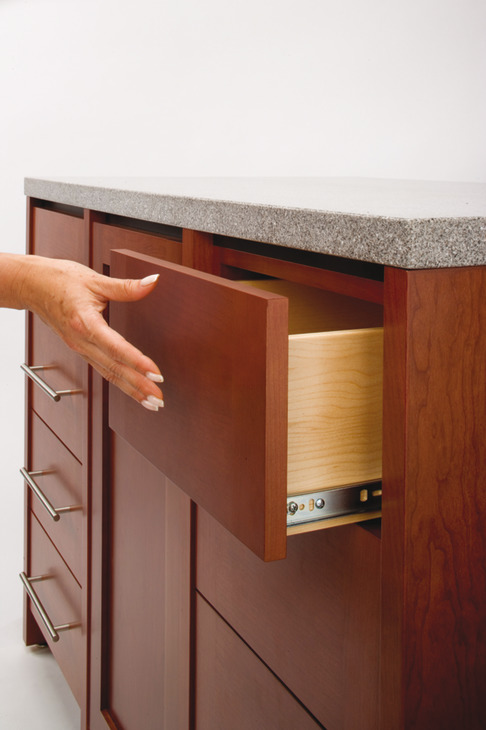

Barrier-free, for people who have difficulty gripping handles and knobs
Also for use in cases where the furniture design requires drawer fronts without handles and knobs
Order reference

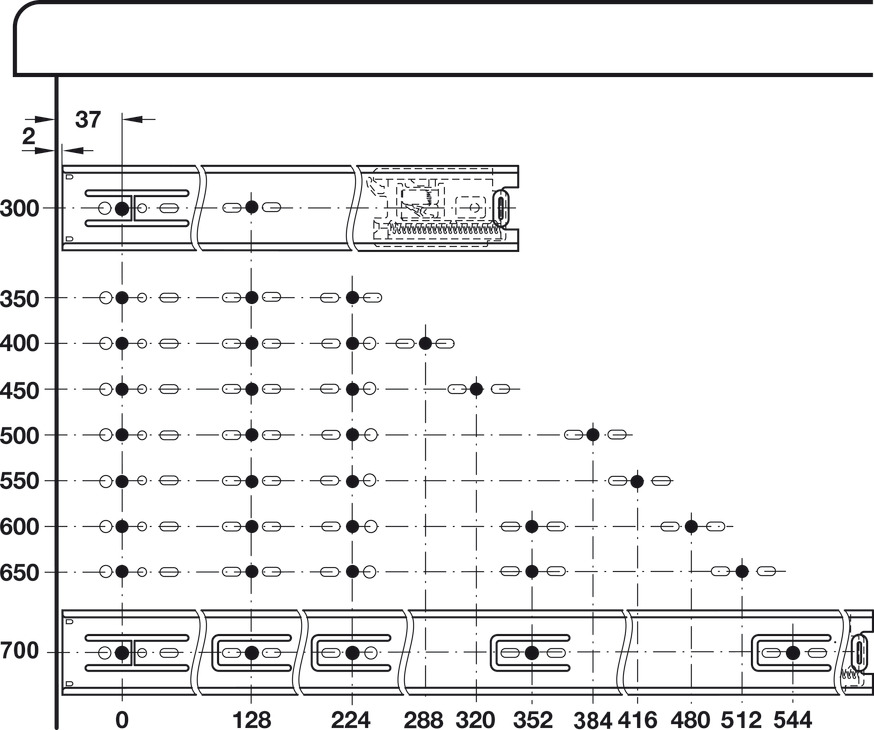

Order Hospa Ø 4.0 countersunk and Varianta Ø 5 cylinder head screws separately
Fixings: Max. head height 2.5 mm, Ø 9.6 mm
Technical details
| Mounting | Side mounted |
|---|---|
| Version | Can be removed using release lever |
| Colour/finish | Zinc plated, Bright |
| Type of pull out | Full extension |
| Removing the running track | without release lever |
| Material | Steel |
| Adjustment facility | Cam drawer adjust feature |

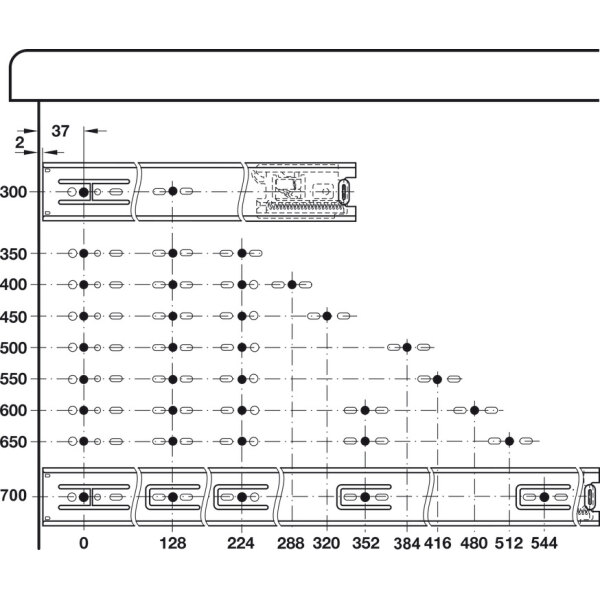

| Installation | At drawer side, The Accuride 633 mounting bracket cannot be used |
